EMI Cover

POCONS PES1117

EMI Cover, 20.925 × 17.997 × 1.4 mm, SUS304 0.225T. Manufactured directly by POCONS — IATF 16949, no broker markup.

Download datasheet (PDF)Printable spec sheet
POCONS PES1117 emi cover — CAD render, top view

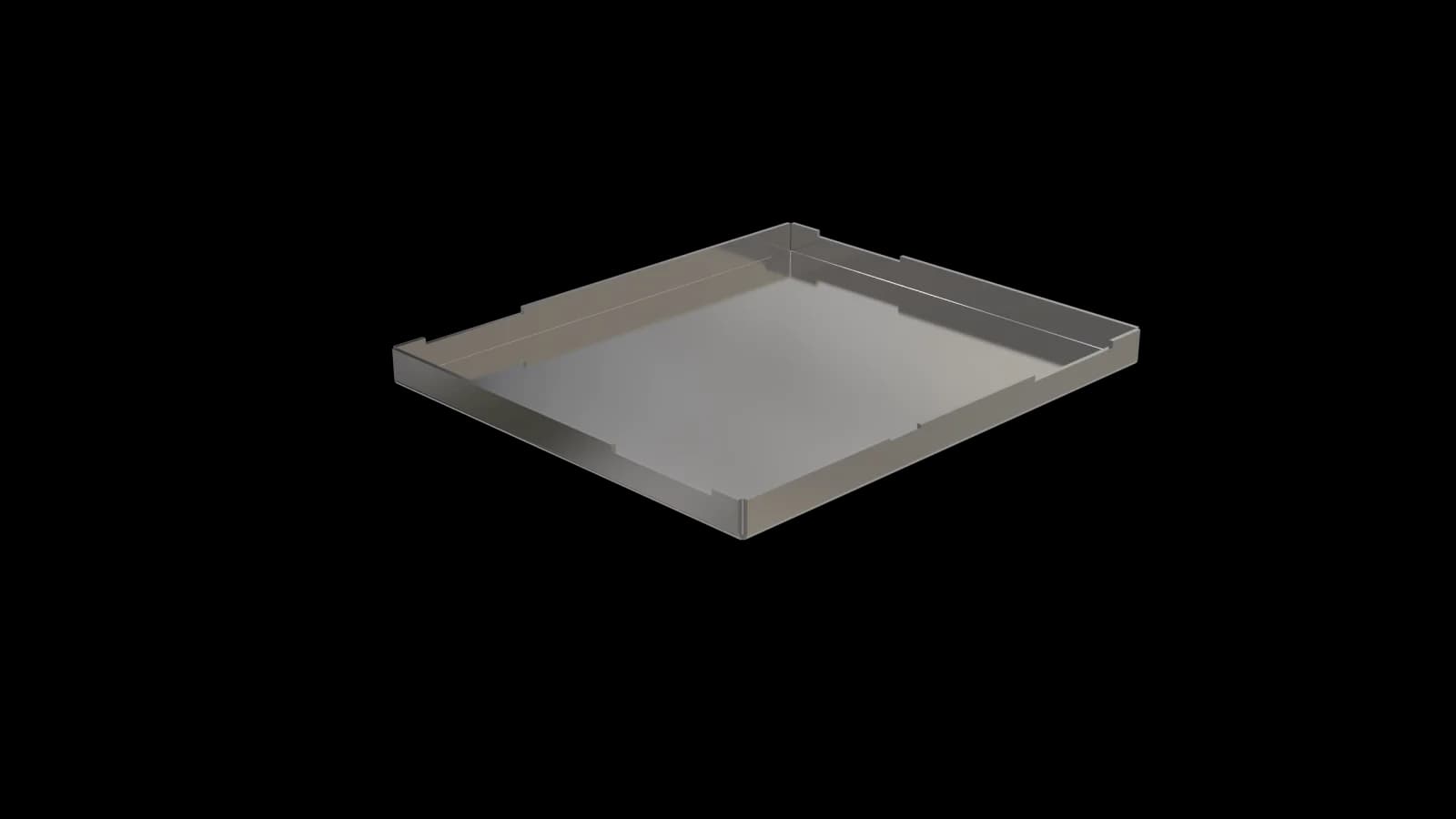

POCONS PES1117 emi cover — CAD render, underside view
CAD render from the POCONS factory model. Dimensions on the spec table are the controlled values.

Availability: standard catalog part. Pricing is quoted within one business day; sample requests are forwarded to the factory, and production lead time is confirmed on the quote.

POCONS PES1117 specifications
CategoryEMI Cover
TypeClip Type
Dimensions (L×W×H)20.925 × 17.997 × 1.4 mm
MaterialSUS304 0.225T
PlatingNi
PackagingTray
CertificationIATF 16949 (automotive-grade)
TOP (L × W)20.93 mm18 mmSIDE (L × H)1.4 mm
Envelope drawing generated from catalog dimensions (L × W × H). Not a controlled drawing: feature geometry, tolerances and pad layout are on the factory drawing issued with samples.

From the factory datasheet

Catalog PDF · p.6 →
Factory datasheet values for POCONS PES1117
MountingClip-fixed cover
Retained by clipPTC3121N
Inner insulating tapeYes
PackingTray

Spec & Compliance

Engineering specifications and compliance
Attachment methodSMD
Material thickness0.225 mm

Full specification and compliance documentation is issued per part with samples. Request it for your part →
