Engineering samples

Ten standard parts to start a design from.

Four shield covers, four clips spanning 0.15 to 0.3 mm can walls, an RF cable clip and an SMD spring contact — the parts most designs start from. Request any of them and POCONS USA forwards the request to the factory.

Request samplesBrowse the full catalog
POCONS PES1550 emi cover — CAD render, top view
PES1550
EMI Cover
One-piece SMD cover, 0.15 mm SUS304 — the smallest carrier-packed can
9.35 × 7.8 × 1.3 mm · SUS304 0.15T
POCONS PES1524 emi cover — CAD render, top view
PES1524
EMI Cover
One-piece SMD cover, 11 × 10.95 mm
11 × 10.95 × 1.2 mm · SUS304 0.15T
POCONS PES1255 emi cover — CAD render, top view
PES1255
EMI Cover
Clip-type cover, 14.9 × 13.4 mm — the most cross-referenced footprint
14.9 × 13.4 × 1.4 mm · SUS304 0.2T
POCONS PES1117 emi cover — CAD render, top view
PES1117
EMI Cover
Clip-type cover with inner insulating tape, Ni-plated
20.925 × 17.997 × 1.4 mm · SUS304 0.225T
POCONS PTC0704 shield can clip — CAD render, top view
PTC0704
Shield Can Clip
Shield-can clip for 0.15–0.2 mm walls — retains PES1255 and PES1470
6.5 × 1.1 × 1.28 mm · SUS · reel 10,000

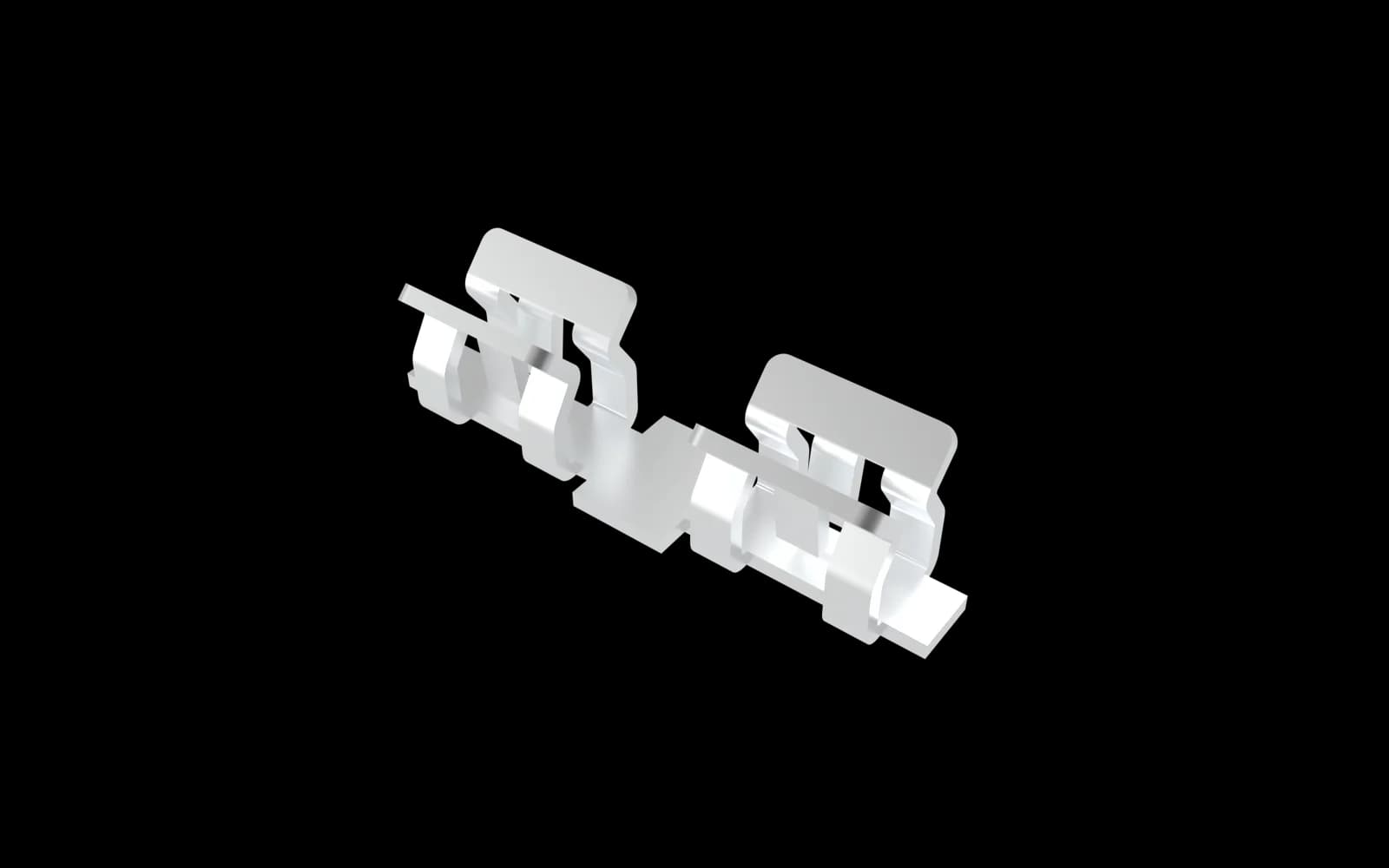

POCONS PTC0703B shield can clip — CAD render, top view
PTC0703B
Shield Can Clip
Shield-can clip for 0.15–0.2 mm walls, narrow 0.8 mm body
6.5 × 0.8 × 1.28 mm · SUS · reel 10,000
POCONS PTC3121N shield can clip — CAD render, top view
PTC3121N
Shield Can Clip
Low-profile clip for 0.2 mm walls — retains PES1116 / PES1117
4.4 × 0.8 × 0.8 mm · SUS · reel 10,000

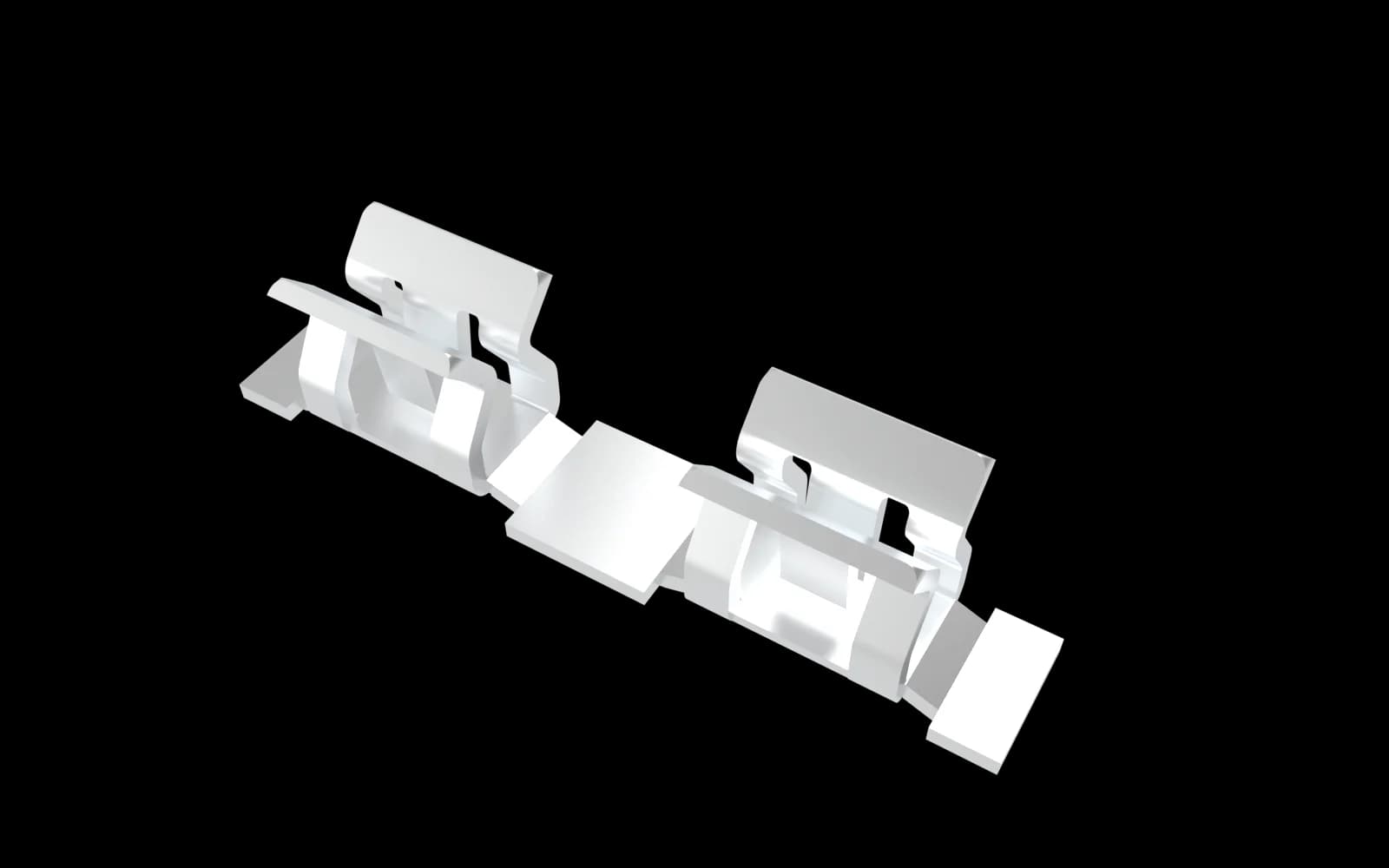

POCONS PTC4944H shield can clip — CAD render, top view
PTC4944H
Shield Can Clip
Big-size clip for 0.3 mm walls — retains the large automotive covers
10 × 1.9 × 3 mm · SUS · reel 1,700

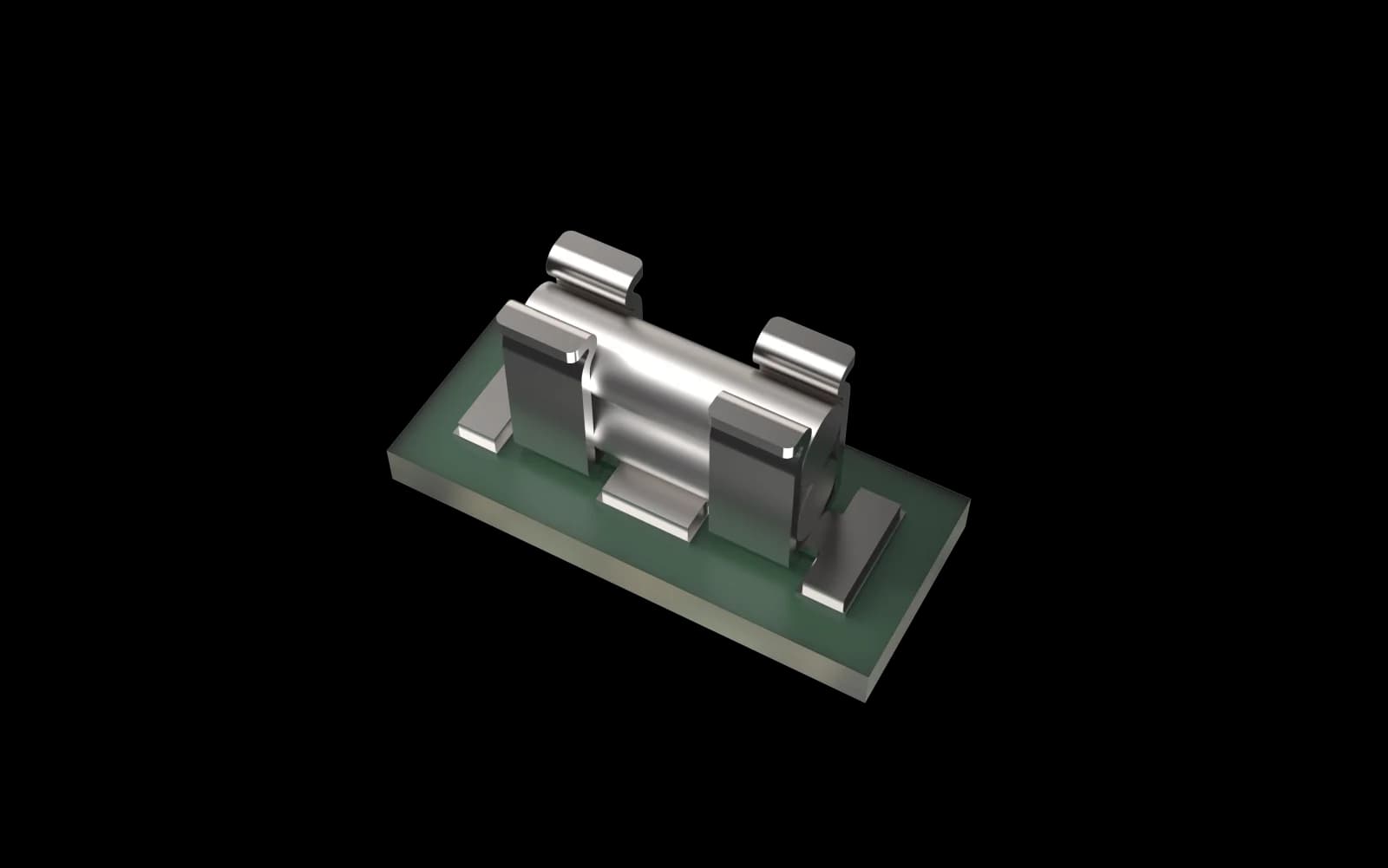

POCONS PCC1004 rf cable clip — CAD render, top view
PCC1004
RF Cable Clip
RF cable clip for Ø1.40 mm coax
4.5 × 1.83 × 1.8 mm · SUS301 · reel 4,000
POCONS PMT1017 c-clip (spring finger) — CAD render, top view
PMT1017
C-Clip (Spring Finger)
SMD spring contact, 3.0 × 1.5 × 1.5 mm, 0.6 mm travel
3 × 1.5 × 1.5 mm
How it works

Pick the parts, tell us the program and quantities. POCONS USA forwards the request to the factory in Suwon, which decides sampling, and we relay its answer.

What helps a request

A named design program, a company email address, the target footprint and wall thickness, and the expected annual volume.

After samples

Catalog parts are quoted within one business day; custom footprints are tooled to your drawing. Reel quantities and minimum orders are on each part page.

Request samples

Tell us the program, the parts and the quantities. We acknowledge within one business day and forward the request to the factory.

Request samples

Sample request FAQs

How does a sample request work?

POCONS USA forwards your request to the factory in Suwon, Korea, with your program, part numbers and quantities. The factory decides whether and when samples ship; we pass its answer back to you, typically within a few business days. Sampling is generally offered against a named design program.

Are samples free?

That is decided by the factory per request. Tell us the program and expected volume — it is the basis of the decision.

Can I get different parts, or more of one part?

Yes. Request samples of any catalog part from its part page, or tell us the footprint and wall thickness you are designing to. Reel quantities and minimum orders for production are on each part page.

What documentation comes with samples?

Documentation is issued by the factory with the samples. Ask for the drawing, certificate of conformance or material certification in your request so it can be included.
