C-Clip (Spring Finger)

POCONS PMT1047

C-Clip (Spring Finger), 4.7 × 1.1 × 4 mm. Manufactured directly by POCONS — IATF 16949, no broker markup.

Download datasheet (PDF)Printable spec sheet
POCONS PMT1047 c-clip (spring finger) — CAD render, top view

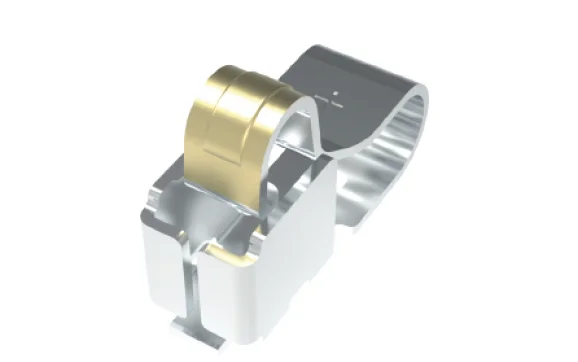

POCONS PMT1047 c-clip (spring finger) — CAD render, underside view

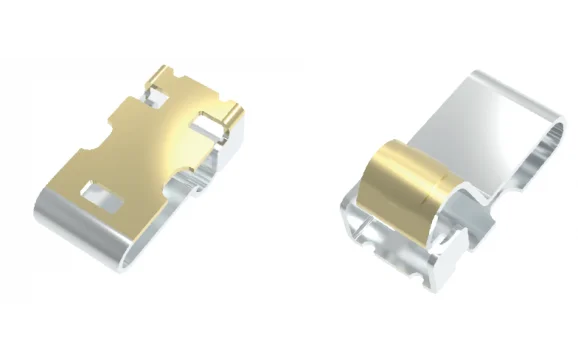

POCONS PMT1047 c-clip (spring finger) — CAD render, view 3

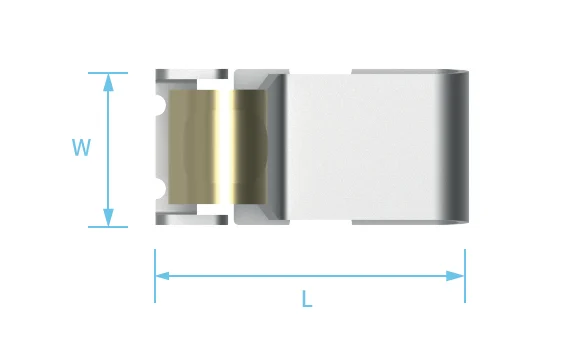

POCONS PMT1047 c-clip (spring finger) — CAD render, view 4
CAD render from the POCONS factory model. Dimensions on the spec table are the controlled values.

Availability: standard catalog part. Pricing is quoted within one business day; sample requests are forwarded to the factory, and production lead time is confirmed on the quote.

POCONS PMT1047 specifications
CategoryC-Clip (Spring Finger)
TypeC-CLIP
Dimensions (L×W×H)4.7 × 1.1 × 4 mm
Material
Plating—
Packaging
CertificationIATF 16949 (automotive-grade)
TOP (L × W)4.7 mm1.1 mmSIDE (L × H)4 mm
Envelope drawing generated from catalog dimensions (L × W × H). Not a controlled drawing: feature geometry, tolerances and pad layout are on the factory drawing issued with samples.

From the factory datasheet

Catalog PDF · p.10 →
Factory datasheet values for POCONS PMT1047
Maximum operating travel1.3 mm
Effective operating range40~70% (0.52~0.91mm)
Recommended contact height3.09~3.48 mm

Spec & Compliance

Engineering specifications and compliance
Attachment methodClip

Full specification and compliance documentation is issued per part with samples. Request it for your part →

See where these shields are used: Applications by industry →

Where are you in the design cycle?

Concept / early designGet design support →PCB layoutRequest CAD & footprint →PrototypeRequest samples →Pre-complianceRequest samples + test data →ProductionRequest production quote & lead time →

Request the PMT1047

Samples, the datasheet, and pricing — direct from the manufacturer, IATF 16949.

Request Samples & QuoteView spec sheetBrowse full catalog

About the PMT1047

What is the POCONS PMT1047?

The PMT1047 is a POCONS c-clip (spring finger) measuring 4.7 × 1.1 × 4 mm, supplied . It is manufactured directly by POCONS (IATF 16949 certified).

How do I get samples or a quote for the PMT1047?

Request samples, the datasheet, and pricing through our contact form. POCONS manufactures direct — no broker markup or added lead time — and typically responds within one business day.
