C-Clip (Spring Finger)

POCONS PMT1072

C-Clip (Spring Finger), 2.7 × 1.5 × 1.5 mm. Manufactured directly by POCONS — IATF 16949, no broker markup.

Download datasheet (PDF)Printable spec sheet
POCONS PMT1072 c-clip (spring finger) — CAD render, top view

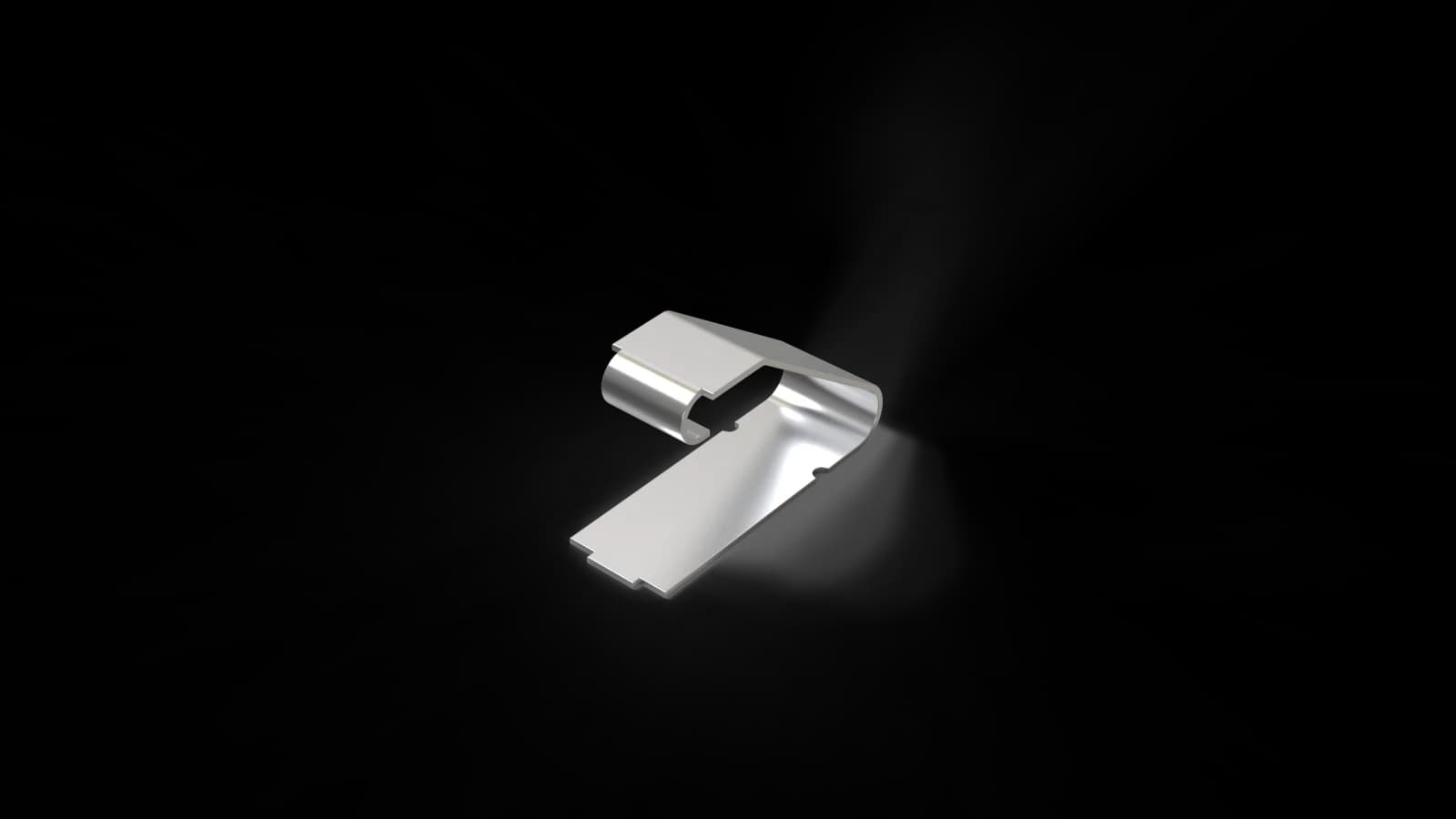

POCONS PMT1072 c-clip (spring finger) — CAD render, underside view

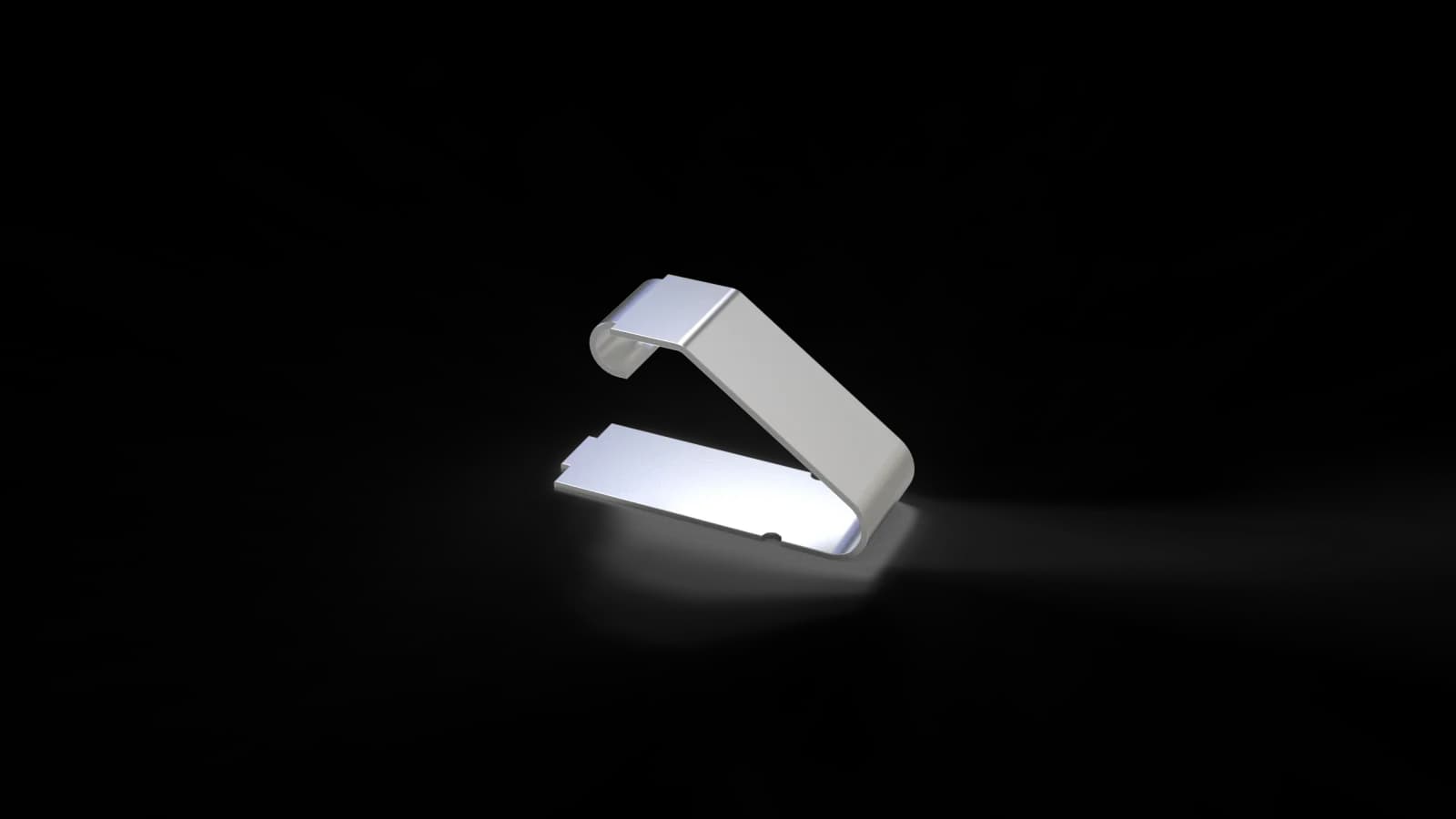

POCONS PMT1072 c-clip (spring finger) — CAD render, view 3
CAD render from the POCONS factory model. Dimensions on the spec table are the controlled values.

Availability: standard catalog part. Pricing is quoted within one business day; sample requests are forwarded to the factory, and production lead time is confirmed on the quote.

POCONS PMT1072 specifications
CategoryC-Clip (Spring Finger)
TypeC-Type C-CLIP
Dimensions (L×W×H)2.7 × 1.5 × 1.5 mm
Material
Plating—
Packaging
CertificationIATF 16949 (automotive-grade)
TOP (L × W)2.7 mm1.5 mmSIDE (L × H)1.5 mm
Envelope drawing generated from catalog dimensions (L × W × H). Not a controlled drawing: feature geometry, tolerances and pad layout are on the factory drawing issued with samples.

From the factory datasheet

Catalog PDF · p.11 →
Factory datasheet values for POCONS PMT1072
Maximum operating travel0.6mm
Effective operating range50~80% (0.30~0.48mm)
Recommended contact height1.02~1.2 mm
Reaction forceVertical 1~2 N

Spec & Compliance

Engineering specifications and compliance
Attachment methodClip

Full specification and compliance documentation is issued per part with samples. Request it for your part →

See where these shields are used: Applications by industry →

Where are you in the design cycle?

Concept / early designGet design support →PCB layoutRequest CAD & footprint →PrototypeRequest samples →Pre-complianceRequest samples + test data →ProductionRequest production quote & lead time →

Request the PMT1072

Samples, the datasheet, and pricing — direct from the manufacturer, IATF 16949.

Request Samples & QuoteView spec sheetBrowse full catalog

About the PMT1072

What is the POCONS PMT1072?

The PMT1072 is a POCONS c-clip (spring finger) measuring 2.7 × 1.5 × 1.5 mm, supplied . It is manufactured directly by POCONS (IATF 16949 certified).

How do I get samples or a quote for the PMT1072?

Request samples, the datasheet, and pricing through our contact form. POCONS manufactures direct — no broker markup or added lead time — and typically responds within one business day.
