Shield Can Clip

POCONS PMT1096A

Shield Can Clip, 9.59 × 5.7 × 7.25 mm. Manufactured directly by POCONS — IATF 16949, no broker markup.

Download datasheet (PDF)Printable spec sheet
POCONS PMT1096A shield can clip — CAD render, top view

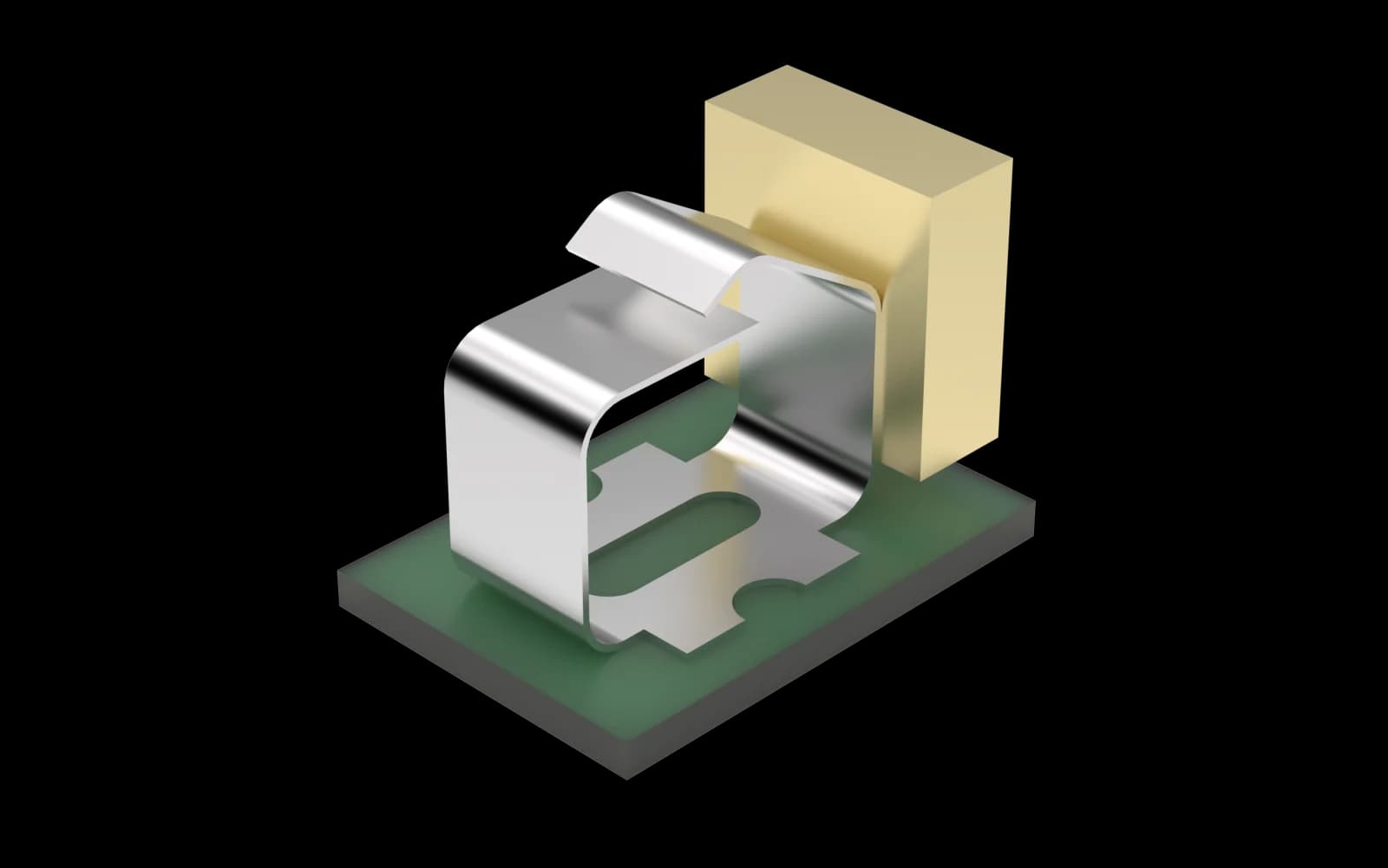

POCONS PMT1096A shield can clip — CAD render, underside view

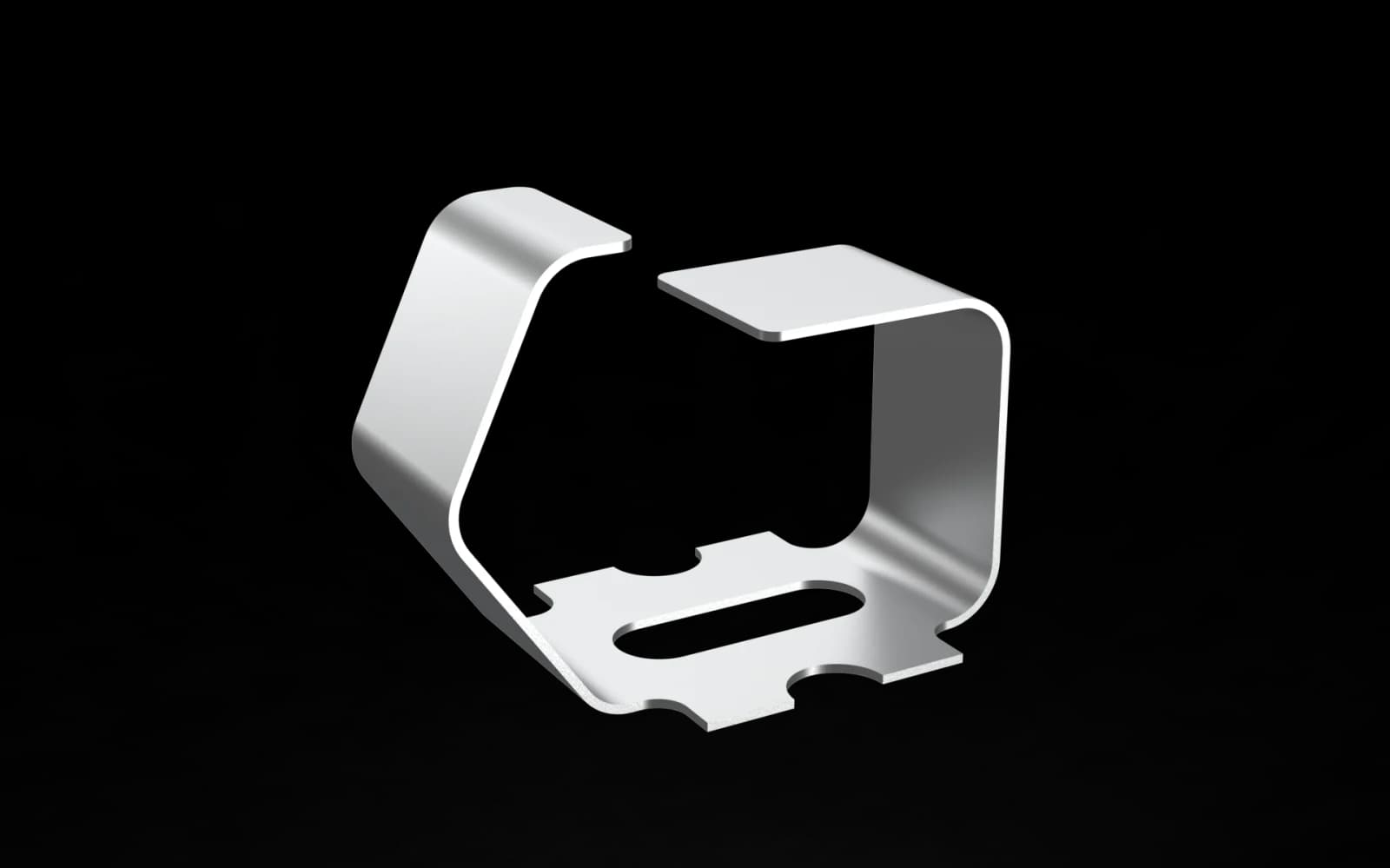

POCONS PMT1096A shield can clip — CAD render, view 3
CAD render from the POCONS factory model. Dimensions on the spec table are the controlled values.

Availability: standard catalog part. Pricing is quoted within one business day; sample requests are forwarded to the factory, and production lead time is confirmed on the quote.

POCONS PMT1096A specifications
CategoryShield Can Clip
TypeVertical and horizontal multi-contact
Dimensions (L×W×H)9.59 × 5.7 × 7.25 mm
Material
Plating—
Packaging
CertificationIATF 16949 (automotive-grade)
TOP (L × W)9.59 mm5.7 mmSIDE (L × H)7.25 mm
Envelope drawing generated from catalog dimensions (L × W × H). Not a controlled drawing: feature geometry, tolerances and pad layout are on the factory drawing issued with samples.

From the factory datasheet

Catalog PDF · p.11 →
Factory datasheet values for POCONS PMT1096A
Maximum operating travel1.80mm (5.70 side)
Effective operating range40~70% (0.72~1.26mm)
Recommended contact height8.6~8.87 mm
Reaction forceVertical 5.2~7.45 N; Horizontal ~5.5 N

Spec & Compliance

Engineering specifications and compliance
Attachment methodClip

Full specification and compliance documentation is issued per part with samples. Request it for your part →
